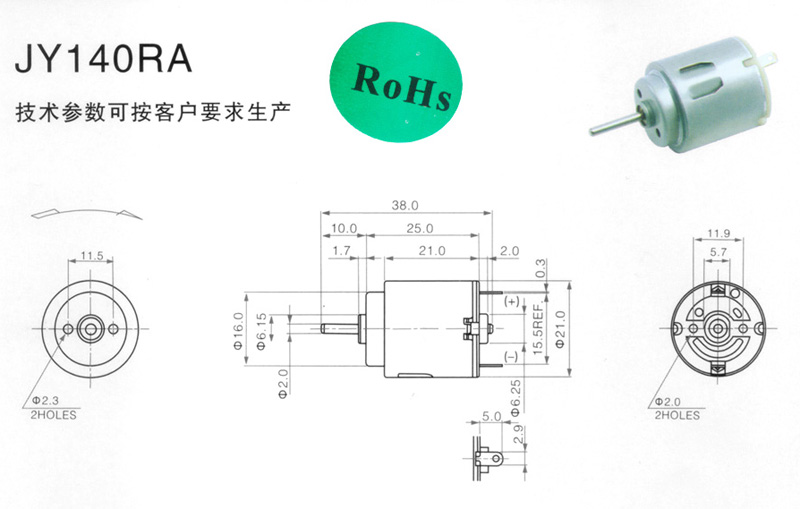

Item No : JY140RA
Name :
Detail :
Name :
Detail :
| 型號(hào) | 電壓 | 空載 | 最大效率下 | 制動(dòng) | ||||||
| 工作范圍 | 額定電壓 | 轉(zhuǎn)速 | 電流 | 轉(zhuǎn)速 | 電流 | 力矩 | 功率 | 力矩 | 功率 | |
| r/min | A | r/min | A | g.cm | W | g.cm | A | |||
| JY140-12240 | 3.0-6.0 | 3V CONSTANT | 4800 | 0.05 | 3700 | 0.13 | 4.0 | 0.15 | 17 | 0.39 |
| JY140-2270 | 1.5-3.0 | 1.5V CONSTANT | 8100 | 0.21 | 6100 | 0.66 | 6.5 | 0.41 | 28 | 2.10 |
| 3V CONSTANT | 14200 | 0.25 | 11200 | 0.98 | 10 | 1.15 | 53 | 3.87 | ||
| JY140-18100 | 1.5-3.0 | 1.5 CONSTANT | 5700 | 0.13 | 4200 | 0.37 | 5.0 | 0.22 | 19 | 1.07 |
| 3 V CONSTANT | 10900 | 0.16 | 8500 | 0.56 | 8.0 | 0.70 | 37 | 2.04 | ||
| JY140-20120 | 3-6 | 3 V CONSTANT | 5000 | 0.07 | 4100 | 0.33 | 13 | 0.55 | 75 | 1.52 |
| 4.5V CONSTANT | 7500 | 0.08 | 6300 | 0.42 | 18 | 1.16 | 113 | 2.21 | ||
| JY140-2865 | 1.5-4.5 | 3 V CONSTANT | 7100 | 0.16 | 5900 | 0.88 | 26 | 1.57 | 170 | 4.80 |
| 4.5V CONSTANT | 10400 | 0.19 | 8900 | 1.15 | 34 | 3.10 | 240 | 6.90 | ||
| JY140-2865 | 4.0-6.0 | 4.5V CONSTANT | 13600 | 0.27 | 11500 | 1.15 | 25 | 2.95 | 180 | 6.90 |
| JY140-20120 | 4.5-9.0 | 24V CONSTANT | 7500 | 0.1 | 6100 | 0.48 | 19 | 1.19 | 105 | 2.13 |
| 24V CONSTANT | 9900 | 0.12 | 8200 | 0.58 | 23 | 1.93 | 135 | 2.82 | ||
| JY140-2485 | 4.5-8.4 | 7.2V CONSTANT | 16800 | 0.21 | 14500 | 1.10 | 30 | 4.46 | 220 | 6.60 |
| JY140-2865 | 4.5-9.0 | 6 V CONSTANT | 14000 | 0.28 | 11000 | 1.40 | 40 | 4.51 | 305 | 9.10 |
